The Process Heatmap plots historical Process Scheduler activity as a day-of-week by hour-of-day grid, so you can see when the scheduler is busy. Use it to find peak hours, scheduler idle windows, and times when a specific job actually runs.

Key Features

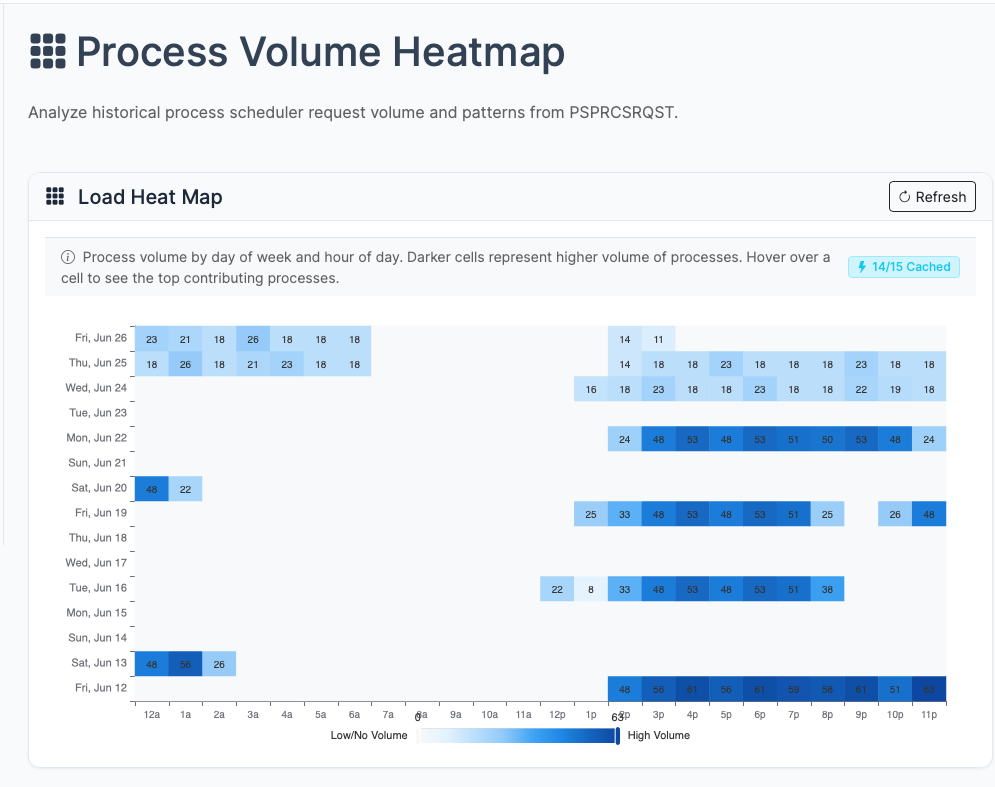

1. Density Visualization: Each cell represents a specific hour of a specific day (e.g., Monday at 2:00 PM). The cell color ranges from light (low volume) to dark/vibrant (high volume).

2. Interactive Filters:

   • Database: Switch between your configured databases to compare load across PROD, TEST, or DEV.
   • Lookback Window: Select the historical date range to include in the calculation (e.g., Last 7 Days, Last 30 Days, or Last 90 Days).
   • Process Type / Name: Filter the heatmap to specific process types (e.g., Application Engines, SQR Reports) or individual process definitions to see when a specific job runs most frequently.

3. Hourly Breakdown: Hovering over any cell reveals the exact number of processes that started, ran, or completed within that specific hour.

Use Cases

• Batch Window Planning: When scheduling a new, resource-intensive batch process, use the heatmap to find the quietest hours (lightest cells) to avoid system slowdowns or resource conflicts.
• Peak Utilization Audit: Identify when the Process Scheduler experiences maximum concurrency. If the grid is consistently dark during specific hours, it may explain CPU spikes or queue delays.
• Scheduler Drift and Efficiency: Check whether the overnight job actually ran overnight, or slipped into the workday.
